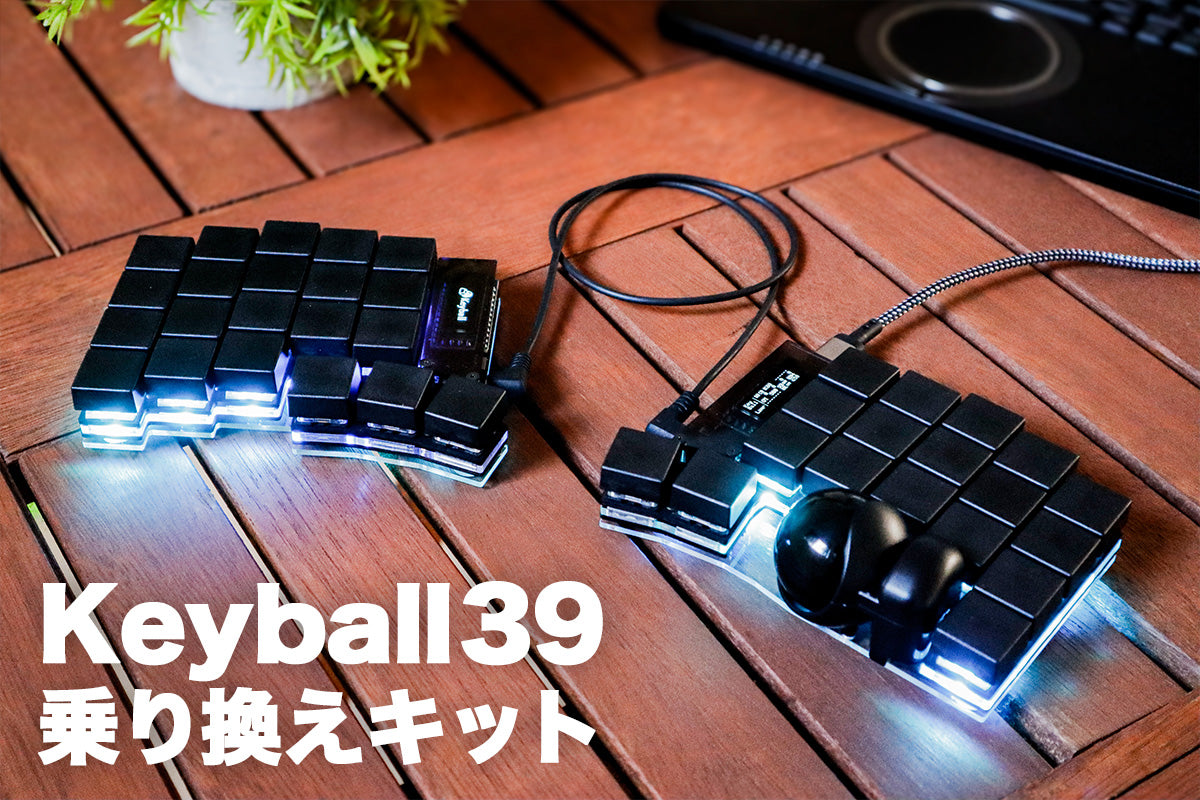

Keyball39 White PCB [Upgrade Discount - Trackball Peripherals Not Included Set]

※Please be aware!
This kit is a discounted set for the Keyball39 called "[Upgrade Discount]," and it is designed for you to reuse the trackball-related parts from your existing Keyball.
(This is for those who were using Keyball44 but want to switch to Keyball39 after all.)
※Please note that trackball-related parts are not included in this package.

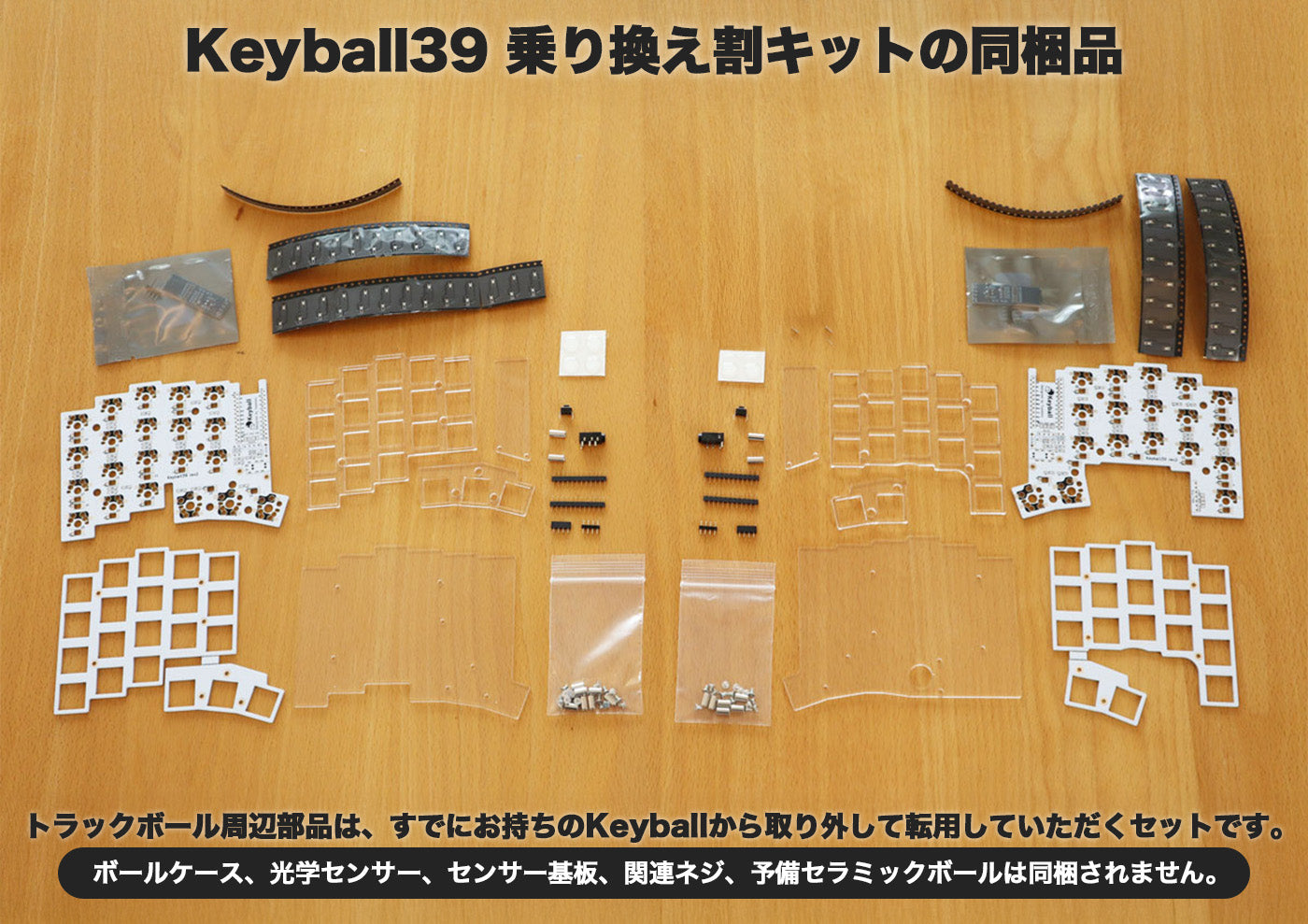

【■Kit Contents■】
※Genuine Keyball trackball peripheral parts are not included!
・Middle PCB (left & right) … 1 set
・Top PCB (left & right) … 1 set
・Middle acrylic plate (left & right) … 1 set (including thumb part)
・Bottom acrylic plate (left & right) … 1 set
・ProMicro protection plate (left & right pair) … 1 set
・L-shaped Conthrough pin (7-pin) … 1 piece
・Flat-head screw M1.7 … 2 pieces
・TRRS jack … 2 pieces
・Tact switch … 2 pieces
・Pin socket & pin header for ProMicro (12-pin) … 4 sets
・Diode (chip type) … 50+ pieces
・OLED module … 2 pieces
・OLED pin socket + pin header (4-pin) … 2 sets
・Spacer M2 11mm … 4 pieces
・Screw M2 3.5mm … 34+ pieces
・Cushion rubber … 8 pieces
・PCB socket for MX switch … 40+ pieces
・Spacer M2 7mm … 13+ pieces
・PCB socket for Choc switch … 5 pieces (for low-profile thumb)
・Spacer M2 4mm … 5 pieces (for low-profile thumb)

【■Not included in the kit, but required:■】
・Genuine Keyball 34mm trackball housing … 1 piece
・Trackball reading PCB, optical sensor, lens … 1 set
・ProMicro … 2 pieces
　You can choose inexpensive ones or those that support USB Type-C.
・Cherry MX compatible key switches … 39 pieces (34 if using low-profile thumb specification)
・Choc compatible low-profile key switches … 5 pieces (only for low-profile thumb specification)
・34mm trackball in your preferred color … 1 piece

【■Not included in the kit, but can be installed:■】
・SK6812MINI-E … 46 pieces

In addition to the above, a TRRS cable for connecting the left and right sides and a USB cable for connecting to a PC are separately required.
Trackball operation was confirmed with Perixx PERIPRO-303 GR 34mm replacement trackballs in red, black, blue, green, and gold.

※The photos are examples of completed products and do not necessarily represent the exact contents of the product.
※Specifications and prices are subject to change without notice.
