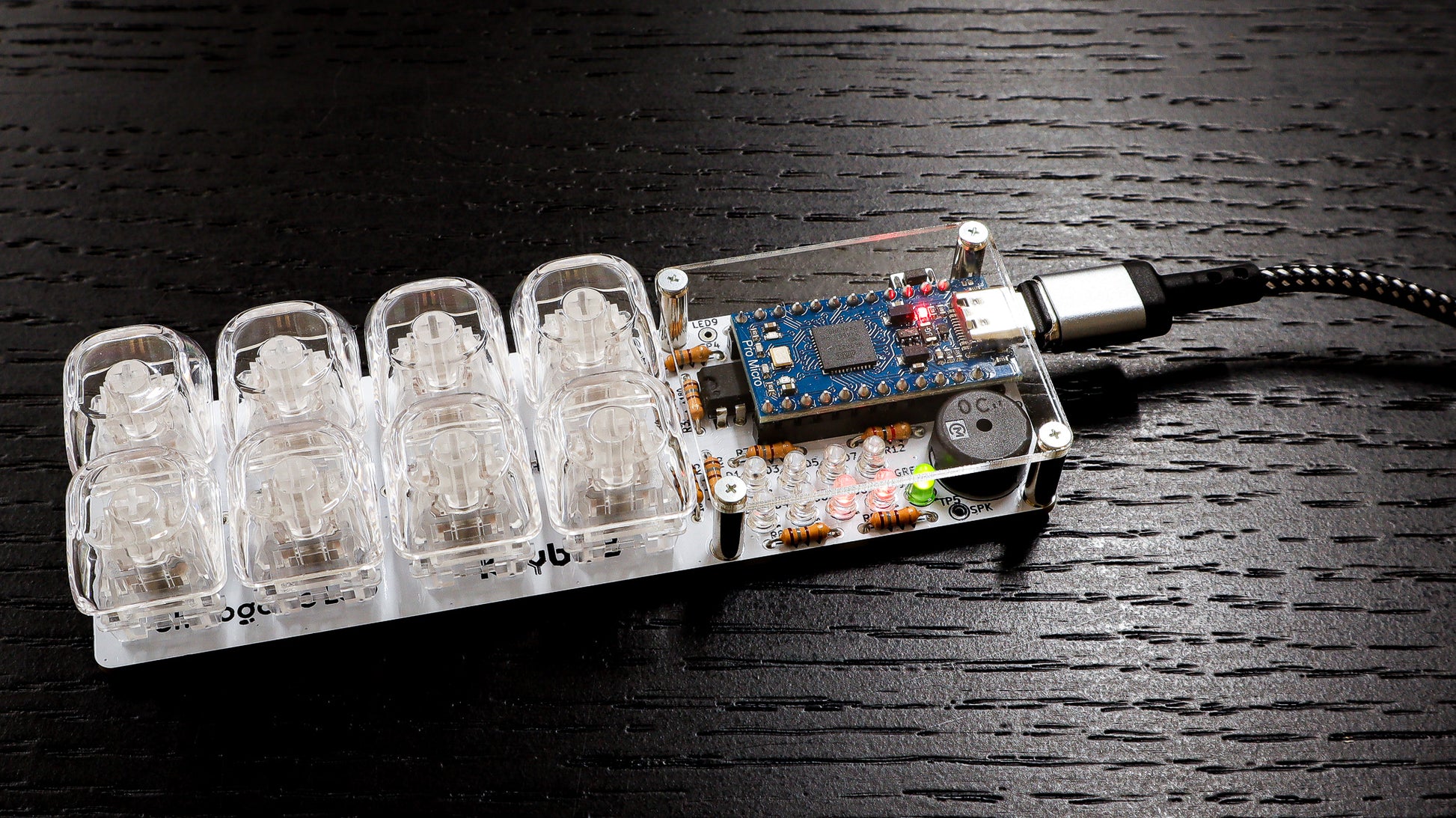

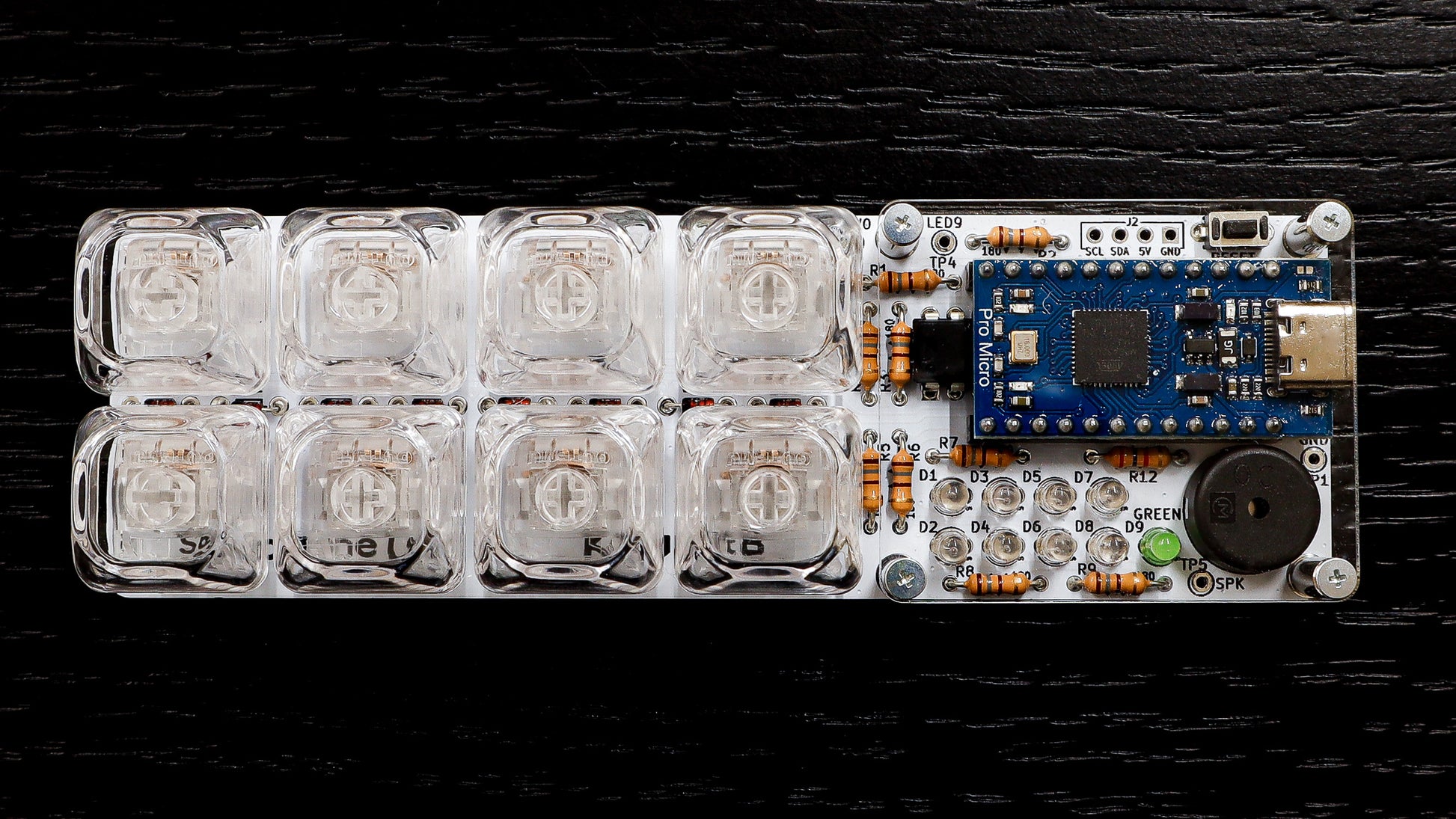

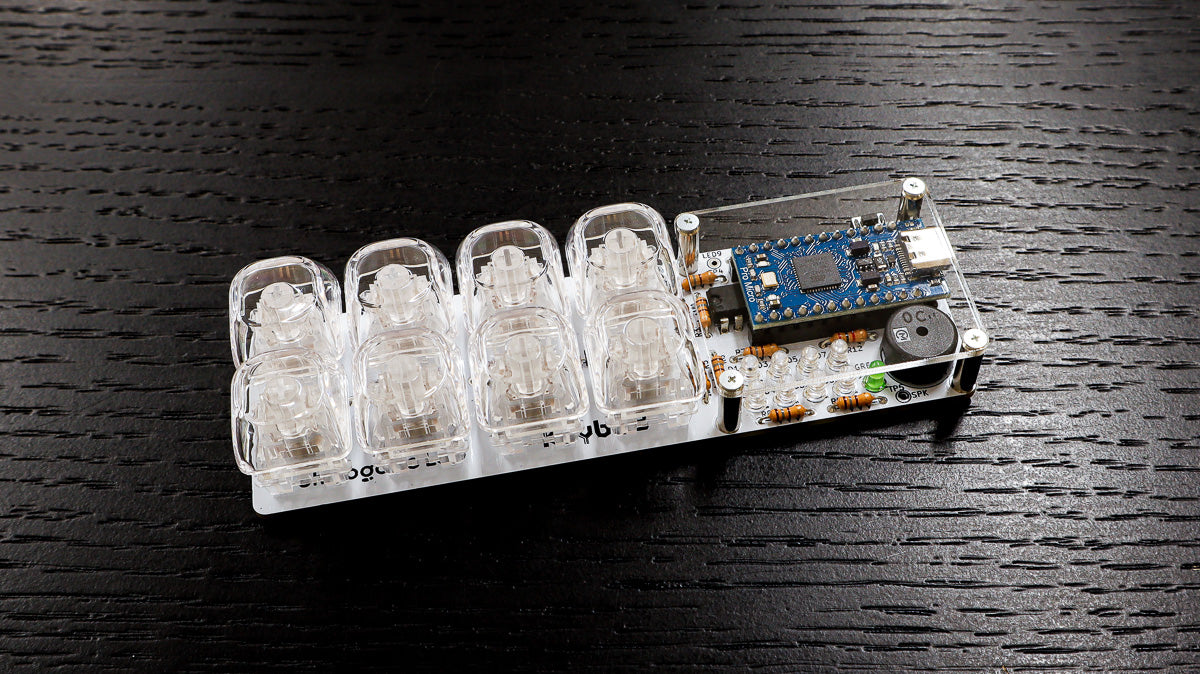

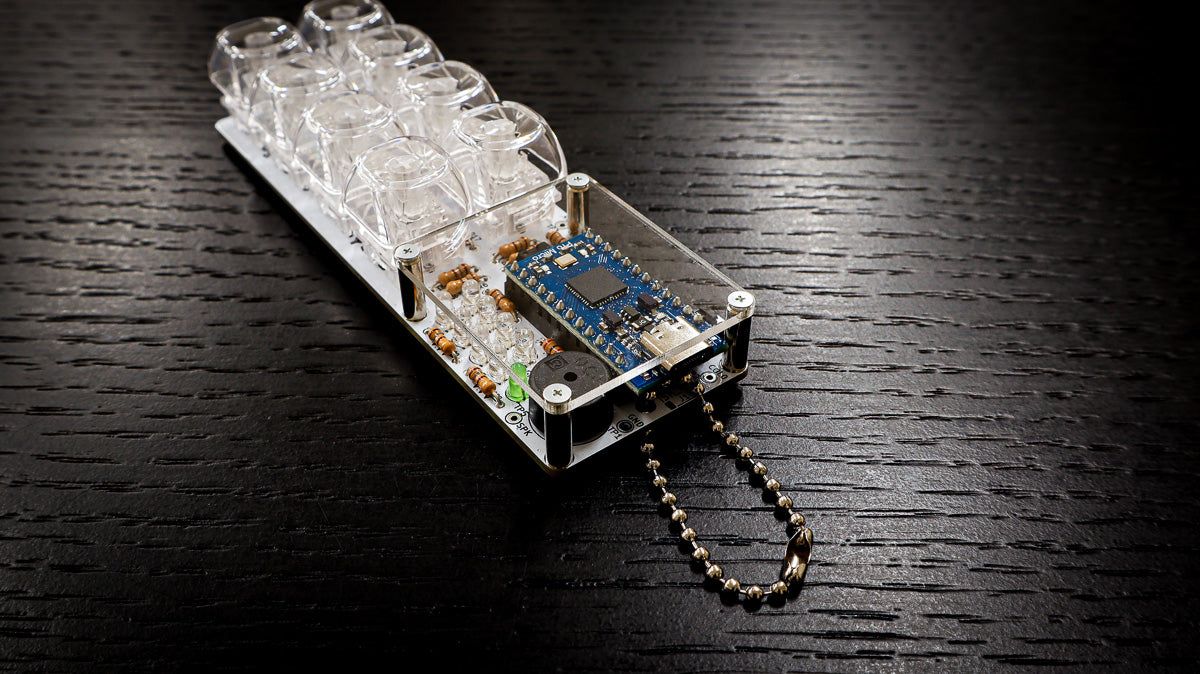

This is a small 8-key macro pad. It can be used as a left-hand input device, and with 9 LEDs and a piezoelectric speaker, you can even create simple games.
*The current PCB color is "white" and the protective plate is "clear".

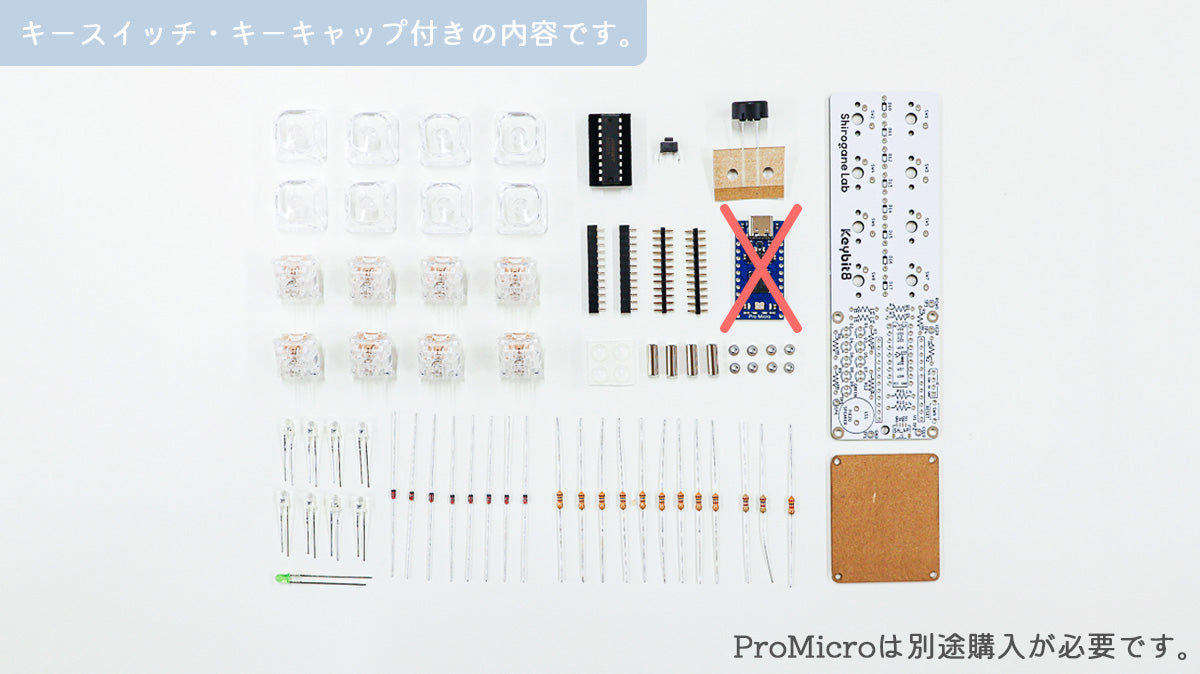

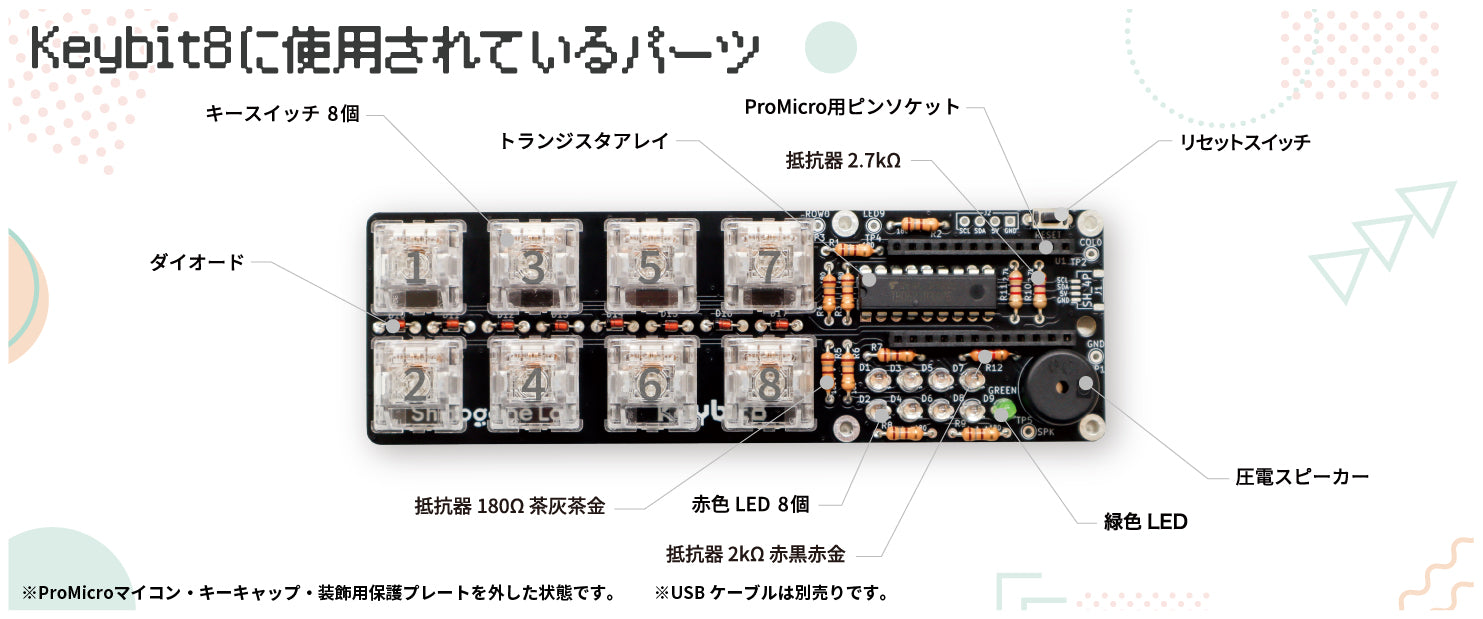

【Kit includes】 1. Keybit8 dedicated white PCB 1 pc 2. Leaded Resistor 180Ω Brown Gray Brown Gold 9 pcs 3. Leaded Resistor 2.7kΩ Red Violet Red Gold 2 pcs 4. Leaded Resistor 2kΩ Red Black Red Gold 1 pc 5. Red LED (clear lens) 8 pcs 6. Green LED (green lens) 1 pc 7. Glass encapsulated diode 8 pcs 9. Pin Header for ProMicro 12P 1.5mm 2 pcs 10. Pin Socket for ProMicro 12P 3.5mm 2 pcs 11. 8ch Transistor Array 1 pc 12. Piezoelectric Speaker 1 pc 13. Tact Switch 1 pc 14. Key Switch 8 pcs 15. Keycap 8 pcs 16. Cushion Rubber 4 pcs 17. Acrylic protective plate (clear transparent) 1 pc
The key switches are transparent, silent, light-press linear switches, and the keycaps are also transparent, making a compatible set with the switches.
Keybit8 schematic is here Keybit8 firmware is here Keybit8 build guide is here

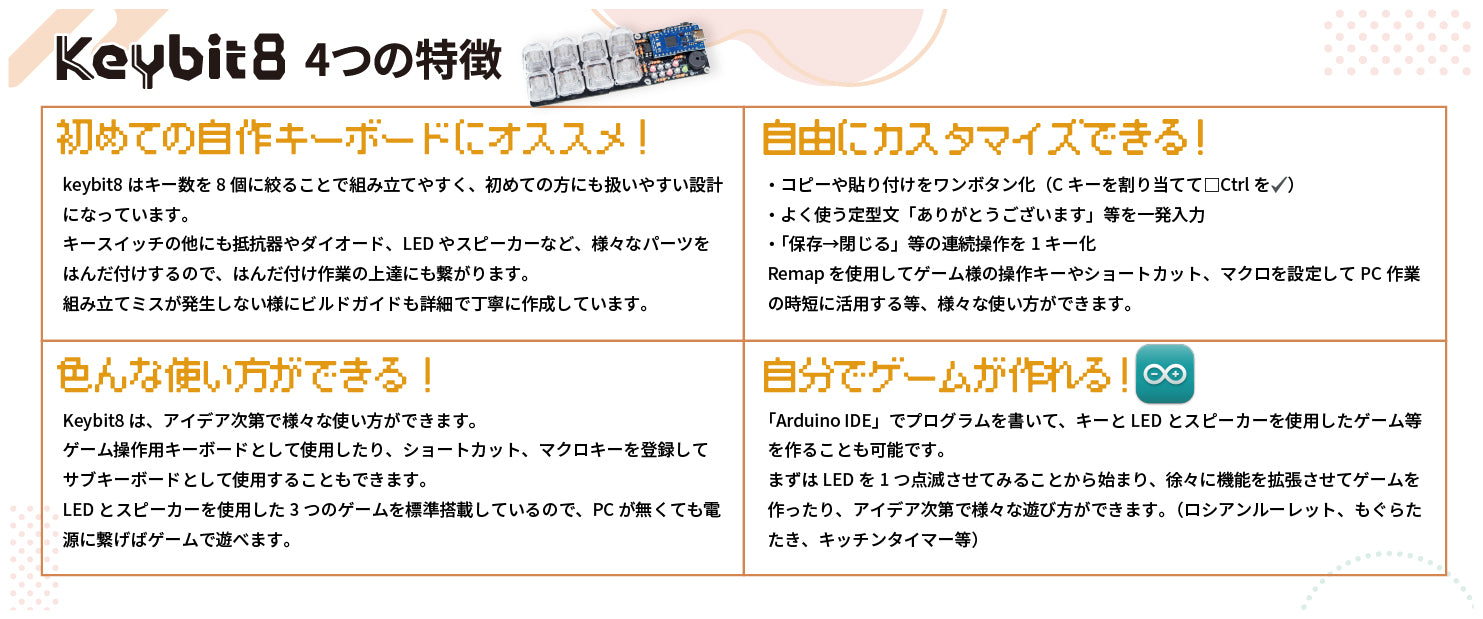

Keybit8 was designed and developed for beginners to purchase and continue using as a programming and game-making tool even after completion, or as a sub-keyboard for a long time.
Even if you're not confident in your programming skills, you can simply tell the AI, "Make a [game name] game with Keybit8," and it will create it for you!

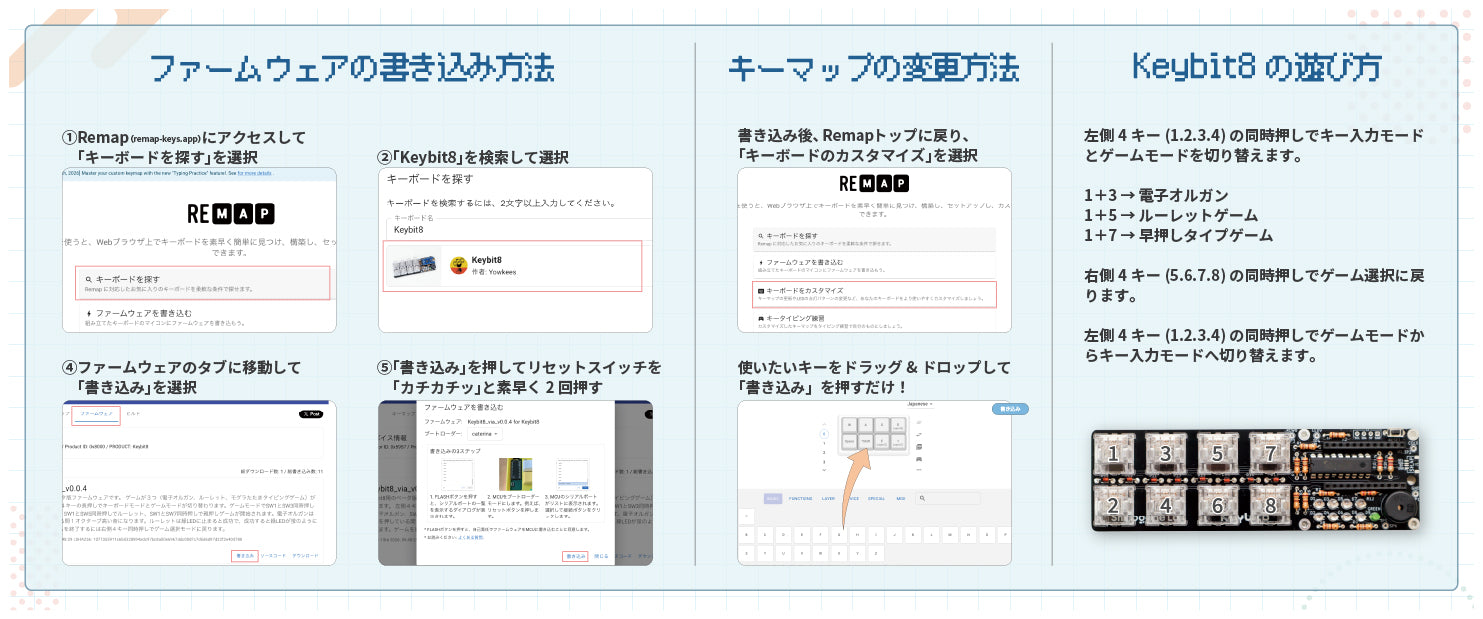

Firmware can be flashed and keymaps can be changed with simple operations from a browser.
You can assemble it with confidence, as the build guide contains detailed instructions on how to build it, how to operate Remap, and how to use the Arduino IDE.
Product Specifications
Power supply
USB cable (sold separately)
Size
W123×D39×H24mm
Weight
59g (excluding USB cable)
Support
For assembly and operation, refer to the build guide
